Narrow-beam high-definition multi-purpose radar speed detector DASLZ-20A , adopts the 5-degree angle narrow-beam anti car black box detect radar of the Institute of Automation, Chinese Academy of Sciences, industrial-grade 2 million pixel camera, high-end wide-temperature four-wire analog resistive touch screen, large-capacity external lithium battery, Professional photography-grade tripod and super-strong handle, which can be placed on the roadside and can also be used as a fixed point. With smart flash, it can meet the needs of all-weather work. The equipment system is fault-tolerant and durable, and can be applied to various extreme weathers.

2. Product configuration

Hardware Configuration

l Highly integrated industrial computer

l 5 degree angle narrow wave speed radar

l HD Gigabit Ethernet Industrial Camera

l 6.5AMT wide temperature four-wire analog resistive touch screen

l Large capacity lithium battery and charger

l Professional-grade tripod and strong handle

l Aviation standard aluminum box

l Smart Flash (Optional)

Software configuration

l Dean V1.0 Smart Capture Software

l Overspeed automatic capture software

l Vehicle Identification Software (Optional)

l Transfer software (optional accessory)

l Background software

l GPS positioning system (optional accessory)

3. Product advantages

1) Integrated design of the host, high practicability, convenient and flexible use.

2) Diversified use, can be used for fixed points or placed on the side of the road.

3) Simplified operation, one-key switch on/off, no complicated operation.

4) Ultra-stable industrial-grade camera, optional 2MP/5MP.

5) Semi-closed design, fish scale holes for heat dissipation, better heat dissipation effect, built-in waterproof and breathable membrane, strengthen sealing performance, excellent dust proof and rainproof performance, suitable for use in all kinds of weather.

6) Ultra-high performance independent DC 30AH lithium battery; normal work more than 10 hours.

7) The snapshot software independently developed by our company can be set according to the software interface

8) The 5-degree narrow-beam speed radar of the Institute of Automation, Chinese Academy of Sciences can effectively prevent car black box detection.

9) Adopt Taiwan AUO's 6.5-inch wide temperature four-wire analog touch screen. The touch screen design makes it simple and convenient to operate in the field; the average trouble-free working time is 30,000 hours, which fully guarantees the stability of quality.

10) The camera unit integrates the latest lens design technology. With the help of polarizer, the driver's face and vehicle license plate can be clearly displayed in the same photo through special optical coating treatment.

11) Automatic and intelligent maintenance, greatly reducing the failure rate.

12) One-key restore function, data retention.

13) The system adopts imported high-reliability connectors, such as Remo connectors and aviation connection devices, which further ensures the safety of the equipment.

14) The system uses a 2 million/5 million pixel high-definition camera capture unit to capture and obtain evidence of illegal vehicles, and records the vehicle speed, capture time, capture location, driving direction, anti-counterfeiting code, equipment number and other information on the picture; and the watermark function is embedded in the picture. Any tampering with the image can be detected, maximizing the validity of the image.

15) USB automatic backup function. Considering the convenience of obtaining illegal data, in addition to downloading illegal vehicle pictures or video files through the network, the system also designs a USB download function. Users can easily download illegal pictures or video files to a USB mobile hard disk or U disk according to their needs. . As long as the USB storage device is inserted into the host, the picture download can be automatically completed without copying and pasting operations.

4. Features

The system is anti-virus and maintenance-free, which can realize one-way and two-way speed measurement, speed limit for large and small cars, blacklist comparison, 4G wireless transmission, GPS positioning, two devices connected in series can realize interval speed measurement, manual capture of line pressure, illegal parking and other violations.

4.1 Vehicle Capture Function

The system equipment adopts industrial design, integrated structure, easy to use, stable and reliable performance, and the equipment is concealed, which can be fixed and moved in different road sections for law enforcement shooting. 2 million high-definition pictures, to meet the needs of a single device to capture 1-4 lanes at the same time. The capture rate is greater than 99.7%.

4.2 Vehicle image capture function

According to the speed limit value and other parameters set by the user (the speed measurement range is 20km/h ~ 180km/h), the system can automatically measure the instantaneous speed of the passing vehicle, and can automatically distinguish the driving direction of the vehicle. Set the speed limit value according to the regulations of different road sections, and accurately take 1-3 (optional) panoramic pictures of speeding vehicles. percentage and driving direction, etc.

4. 3 The system automatically adjusts the camera exposure function

The system can automatically adjust the exposure of the camera according to the change of light. When there is no fog in the environment, including rain and snow, and no street lighting at night, the strobe auxiliary light source is used to fill in the light to ensure that the system can clearly capture images of illegal vehicles under various conditions. , including the color of the license plate, the type of the vehicle and the facial features of the driver.

4.4 Storage of illegal vehicle data

When the system captures illegal vehicles, 1-3 pictures can be selected each time, and the image files formed by shooting are saved locally in JPEG format, which can store 700,000 pieces of data information.

4.5 System capture range

The system captures the lane range of more than 4 lanes, the speed measurement range is 20km/h ~ 180km/h, the capture rate is 99.7%, and supports the speed measurement of ultra-low-speed vehicles in two-way lanes.

4. 6 kinds of human-computer interaction interfaces

In order to facilitate operation and use, the system provides two human-machine interfaces, mouse and touch screen. The user-friendly operation interface in Chinese is adopted, and the interface design is simple and easy to understand. In order to cooperate with the complex outdoor working environment, the equipment adopts a touch screen design, and you can view the captured images of illegal vehicles and the time and speed of speeding vehicles through the LCD screen in real time. Dynamic Information.

4. 7Separate speed limit function for 7 large and small models

The system can set the speed limit according to road conditions and large and small vehicles. When passing vehicles pass, the system can identify large and small vehicles for speeding snapshots.

4.8 Local storage function

The system is equipped with a 128G large-capacity solid-state drive, which can store 700,000 images of illegal data.

4.9 Statistical retrieval function of illegal data

The system provides a speeding vehicle statistics function, which can count the number of speeding illegal vehicles within a certain period of time, and output it in the form of a report, providing a basis for effective traffic management and improving traffic efficiency. At the same time, it provides information retrieval function, operates the database according to different permissions, and provides fuzzy query and data backup.

4. 10 Automatic maintenance function

The system has an automatic maintenance function, and the automatic maintenance cycle can be configured as needed. During automatic maintenance, the parameters of the equipment can be re-initialized and restored to the previous working state.

4. 11 Software identification function

Based on efficient license plate recognition software, the system has automatic overspeed capture and can set the speed limit function for large and small cars, the speed limit value and the starting value are set separately, and has a blacklist comparison function. The license plate recognition rate is as high as 95%. The software realizes the functions of real-time video observation and picture preview, and can perform real-time video recording, manual capture of line pressure violations and all other violations. It has functions such as traffic flow statistics, illegal query, and snapshot statistics to prevent artificial deletion and modification.

4. 12 USB automatic backup function

Considering the convenience of obtaining illegal data, in addition to downloading illegal vehicle pictures or video files through the network, the system also designs a USB download function. Users can easily download illegal pictures or video files to a USB mobile hard disk or U disk according to their needs. . As long as the USB storage device is inserted into the host, the picture download can be automatically completed without copying and pasting operations.

4. 13 Data transmission and remote maintenance functions

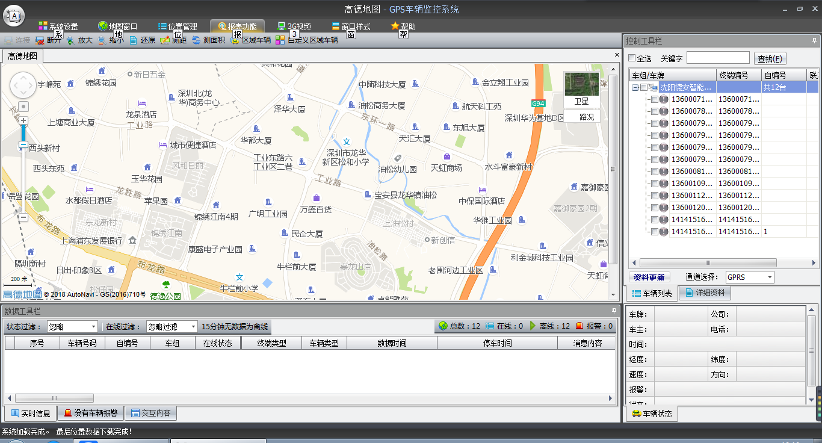

Through Ethernet, CDMA/GPRS and 4G technologies, data transmission, remote access and remote system maintenance functions, and the operation status of key components are realized.

4. 14 User management function

The user authority is divided into levels, and the user authority can be added, deleted and modified according to the user level. Users of different levels have different operation authority. When performing key operations suchas system parameter setting, image deletion, and system upgrade, user authority verification must be performed.

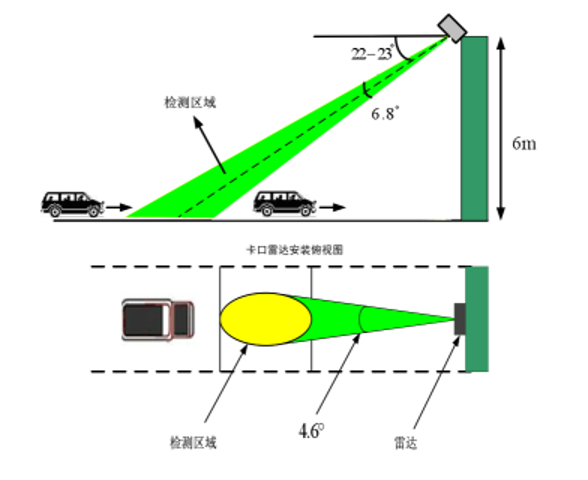

4. 15 Use 5-degree narrow- beam radar to measure speed to prevent car black boxdetection

The system adopts a 5-degree narrow-beam flat-panel radar produced by the Shenyang Institute of Automation, Chinese Academy of Sciences. The speed measurement accuracy fully meets the requirements of the national standard. The narrow beam ensures that the radar is not easily detected by the "electronic dog", and can monitor the coming and going vehicles at the same time.

4. 16 Equipment with strong reliability

Low power consumption and reliable connection ensure that the system operates in all-weather and trouble-free conditions under harsh conditions. The system adopts industrial-grade devices in the design of hardware circuits. The whole machine has low power consumption and reliable performance. The working time of the lithium battery can reach 10h. In the selection of connection devices, the system adopts imported high-reliability connectors, such as Remo connectors and aviation connection devices, which further ensures the reliability of the equipment.

4. 17 kinds of networking capabilities

The system can use wired network to form a network, and can use wireless networks such as CDMA/GPRS/4G to form a network, which minimizes the dependence on the installation location. Easy to download data, support optical fiber wired wireless and U disk etc.

4. 18 Ultra-low power consumption

Using 30AH large-capacity lithium battery, the average power consumption of the whole machine is less than 40W under normal conditions, and a standard lithium battery can be used for more than 10 hours.

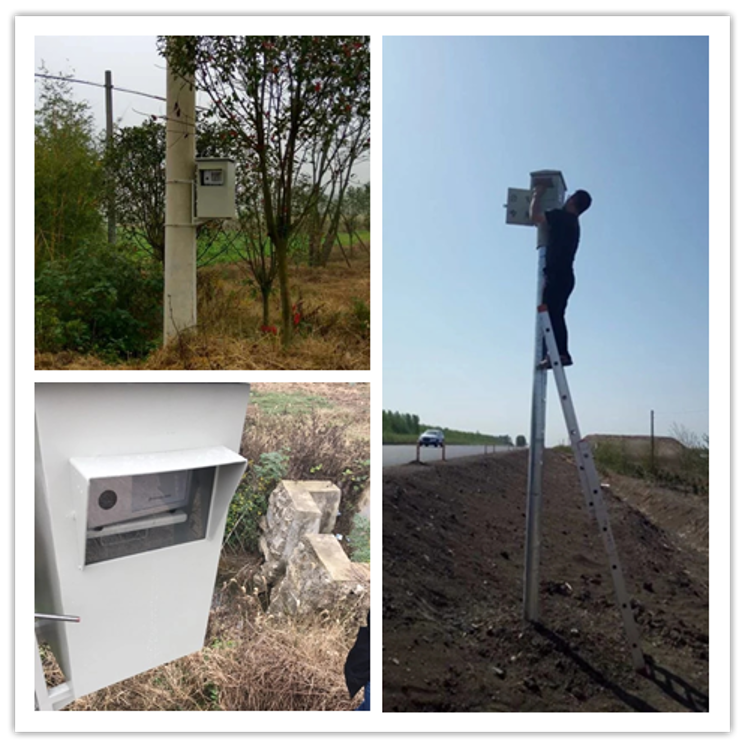

4. 19 fixed and portable can be converted into each other , more flexible

DASLZ-20A speed measurement and capture instrument integrates high-definition capture camera, control host, LCD screen, power supply, speed measurement radar, storage hard disk, etc. The whole system has a compact structure. The integrated design of the system allows users to easily convert between fixed and portable.

4. 20 pictures tamper-proof

The system uses a 2 million/5 million pixel high-definition camera capture unit to capture and obtain evidence of illegal vehicles, and records the vehicle speed, capture time, capture location, driving direction, anti-counterfeiting code, equipment number and other information on the picture; and the watermark function is embedded in the picture. Tampering with the picture can be detected, to the greatest extent to ensure the validity of the picture.

4.21 GPS positioning function

Through the GPS positioning function, time synchronization and real-time positioning information can be realized.

4. 22 Combined layout of real and imaginary points

According to the experience of using speedometers in the world, the reasonable ratio of real points and imaginary points is 4:1. On average, a solid point is arranged every 25 kilometers, and an imaginary point is arranged every 5 kilometers. With a warning sign, the speeding problem on this road section can be managed within a year and accidents can be reduced. It is very convenient for the fully embedded all-in-one machine to be rotated between any cabinets, which greatly saves the cost and improves the effect of the entire project. At the same time, a simple and practical traffic flow statistical analysis system is used. By analyzing the time, speed and other information of all vehicles passing through the monitoring point recorded in the log file generated by the trigger signal, detailed statistical charts such as total traffic and illegal traffic can be statistically analyzed. and reports. Knowing this information provides a decision-making basis for the rotation of equipment at real and virtual points, and maximizes the use of existing equipment to expand the scope of warnings and maximize utilization.

5. parameter

	parameter name	Specific parameters
device host	size	220190155mm
	shell material	Galvanized spray paint shell
	Weight (KG)	3.85KG
industrial computer	model	ECM-I715
	size	1(WH): 146mm108mm
	processor	Intel® Celeron® Processor J1900 processor frequency 2.0~2.42GHz, quad-core four-thread, 2M cache, 22nm, TDP 10W
	system memory	DDR3L 4G
	hard disk	128G solid state
	power supply	DC IN 9~36V
	Operating temperature	-20℃～60℃
	Storage temperature	-40℃～85℃
	operating system	Windows 7
display screen	model	LCD screen EE070NA-01D
	size	7 inches
	resolution	1024*600
	Display mode	Normally White, Transmissive
radar	speed error	When the speed value is between 0-100km/h, the error is less than -3km/h. When the speed value is greater than 100km/h, the error is less than -3%.
	Speed range	(10~300)km/h
	working frequency	24.14.GHz
	capture rate	>99%
	Capture distance	0-300m
	power supply	(9 ~ 16) VDC
	trigger form	Support head, tail, double trigger
	direction discrimination	Support, can distinguish coming and going
	Working power consumption	<2W
	Operating temperature	-40℃~ 85℃
	Working humidity	Relative humidity 5% ~ 95%
	protection level	IP67
	weight	0.5 kg
camera	model	MER-503-20GM/CP
	resolution	2448(H)×2048(V)
	frame rate	20 fps
	sensor	2/3" ,Global Shutter Sony IMX264 CMOS
	pixel size	3.45 μm × 3.45 μm
	spectrum	black and white / color
	exposure time	20μs~1s
	power supply interface	12 VDC (powered by 8-Pin interface) or PoE
	power	<3W @12VDC, <3.75W@PoE
	Operating temperature	0°C ~ +45°C
	storage temperature	-20°C ~ +70°C
	Working humidity	10% ~ 80%
Battery	type	External 30AH lithium battery
	Specification	22381171mm; 2.7KG
	shell material	Anti-static aluminum-magnesium alloy oxidation paint shell
	Endurance	About 10 hours; depending on the use environment
	charging time	about 7 hours
tripod	tripod	Victaulic professional grade tripod
tripod	Tripod Specifications	175MM-1530MM; 0.433KG; black
flash	Flash parameters (optional)	Flash power: 50WS
		Guide number (GN): 73 (ISO 100 1M)
		Flash color temperature: 5000-6000K
		Flash output power: 50WS
		Call back time: 1.2s
		Second flash interval: <50ms
		Flash delay: less than 100us (the delay from when the camera sends a trigger signal to when the flash reaches maximum brightness).
		Flashing life: no less than 1 million times (imported bayonet lights with special capacitors no less than 10 million times).
		Optimum illumination distance: The illuminance that can be provided at a distance of 15-22 meters from the front of the lamp is the best brightness.
		Control mode: digital input or TTL high level Working voltage: DC 12V (11V-14V)
		Ambient temperature: -30℃~70℃
		Sealing grade: IP65
	Recommended by user unit	Traffic police, factories, airports, mining areas, army, ports and other institutions
